Sofar Three Phase Three MPPT Solar Inverter (50000TL)

 315,000

Quick Overview

SOFARSOLAR is one of the subsidiaries of SOFAR Group in China and specializes in R&D, production, sales and service of grid-tied inverters ranging from 1kW to 7.5kW (residential), 10kW to 255kW (commercial) , hybrid inverters ranging from 3kW to 20kw and Amass store battery, etc . SOFARSOLAR is currently known to be one of the top 5 string inverter companies found throughout China. After breaking ground and gaining the reputation of being reliable, efficient, and professional, it has now become one of the famous companies in power storage inverters.



Brand Sofar
Product Code 50000TL
Warranty 5 years
User Guide Download PDF

In stock

SKU: SOF-50KTL Categories: ,

Sofar Three Phase Three MPPT Solar Inverter (50000TL)

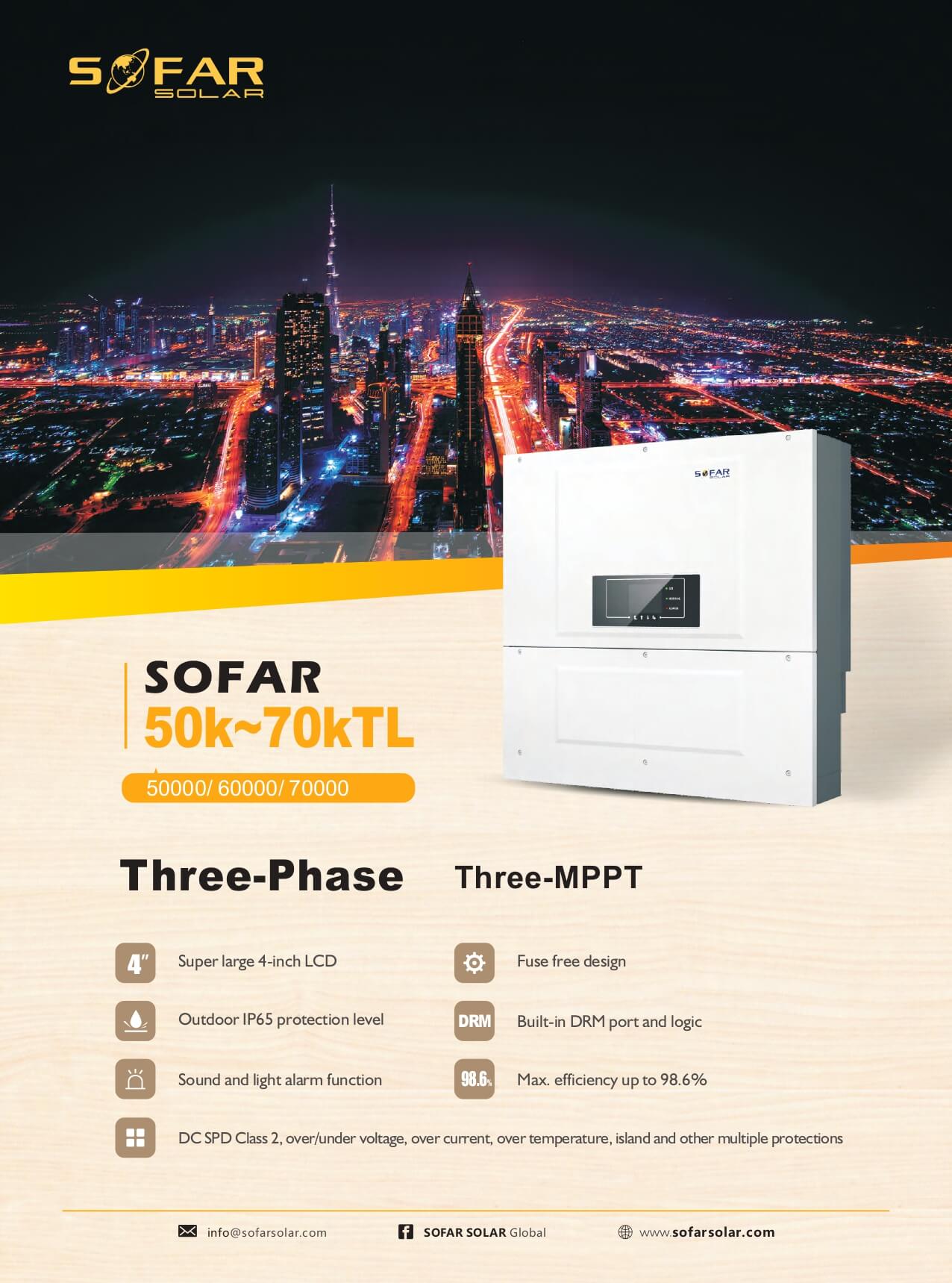

This Sofar Three Phase Inverter comes with 3 MPPT program—it has a fuse free design with built-in DRM port. This solar inverter offers outdoor IP65 protection level with sound/light alarm function.

Some of the main features of this inverter are;

  • It comes with 50K – 70KTL.
  • The maximum efficiency is up to 98.6%.
  • The warranty of this solar inverter is extendable up to 5 years.

Working Efficiency

The working efficiency as of the input (DC) of;

  • The max PV input power is 66500 Wp.
  • It comes with maximum input voltage of 1000 volts.
  • The voltage required for the starting up of the solar inverter is 350 volts.
  • Rated input voltage is about 600 volts.
  • The MPPT operating voltage range is 250 to 950 volts – full range is about 530 to 800 volts.
  • It gives maximum input current pet string of 12 Ampere.

Output (AC) voltages are about;

  • The rated power of this model is 50000 watts—while the maximum power is about the same to the rated ratio.
  • It gives the maximum output current of 80 Amperes.
  • The grid voltage range ranges between 310 Vac to 480 Vac.
  • The frequency it comes with is 50/60 Hz.
  • Grid frequency range is according to local standards which range from 45 to 55 Hz or 54 to 66 Hz.
  • This model offers active power adjustable range from 0 to 100%.

Related: Sofar Three Phase Dual MPPT Solar Inverter (15000TL-G2).

General Data

The dimensions of this model are 713 x 737 x 297 mm with the net weight of about 68 kg. This PV inverter works in an ambient temperature range of -25 degrees Celsius to +60 degrees Celsius. The allowable humidity ranges from 0 to 100%. This solar inverter can operate in an altitude of up to 4000 m. The model is able to tolerate over heating scenarios with integrated fan cooling systems.

Protection

There are some protective features this model offers with PV technology which helps in keeping the inverter safe from sudden shut down or any shot circuit issues. It consists of DC reverse polarity protection system. Moreover, it also offers anti islanding, ground fault monitoring and IP65 protection systems that make your inverter safe.

Related: Sofar single phase dual MPPT solar inverter (5KTLM-G2).

Frequently Asked Questions

What happens if there is snow on solar panels?

Solar panels are used to generate power from sunlight. So, if there is snow on panels then the solar panels will not properly catch the sunlight. The snow is not that heavy to cause any structural disorder with your panels but they are enough to block the radiation causing stoppage of solar production. If there is snow on panels, make sure to clean it at that time to avoid any power storage problems.

Will I still receive an electric bill if I have solar panels?

You can receive an electricity bill if your solar system has battery storage plus it is not totally off the grid. Like, if you have connected power supply to your house, even if you don’t consume any, still you might be surprised with a teensy charge. Thus, you can reduce your electricity bill or can totally get rid of it, if you own a solar panel system which matches the same energy use of your house.

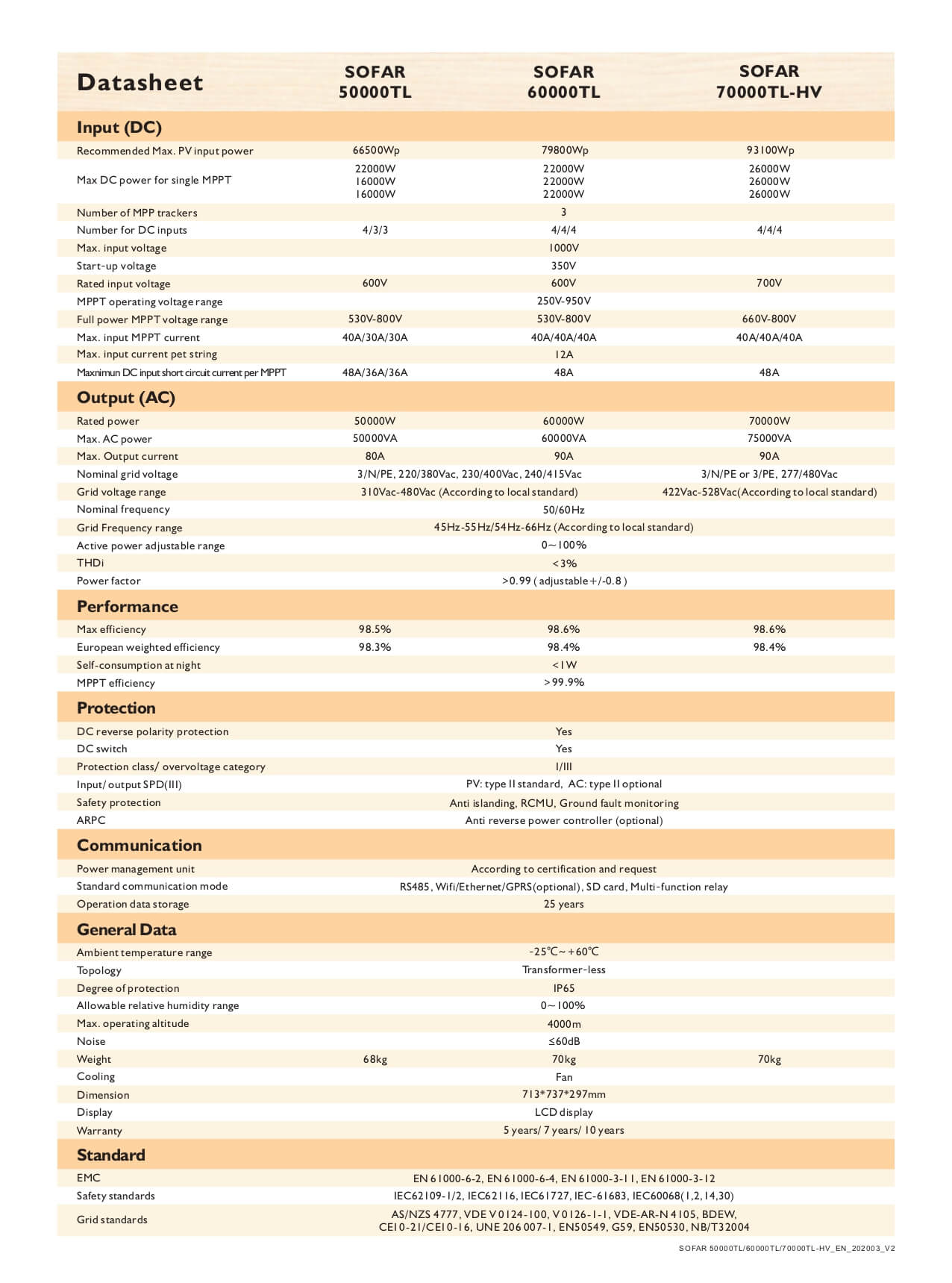

Technical Specification

MODEL 50000TL
INPUT (DC)
Recommended PV input power Max. 66500Wp
Max DC for single MPPT 22000W
16000W
16000W
Number of MPP trackers 3
Number of DC inputs 4/3/3
Max. Input voltage 1000V
Start-up voltage 350V
Rated input voltage 600V
MPPT operating voltage range 250-950V
Full power MPPT voltage range 530V-800V
Max. Input MPPT current 40A/30A/30A
Max. input current pet string 12A
Maximum DC input short circuit current per MPPT 48A/36A/36A
OUTPUT (AC)
Rated power 50000W
Max. AC power 50000VA
Max. Output current 80A
Nominal grid voltage 3/N/PE, 220/380Vac, 230/400Vac, 240/415Vac
Grid voltage range 310Vac-480Vac (According to local standard)
Nominal frequency 50Hz/60Hz
Grid frequency range 45Hz-55Hz/54Hz-66Hz (According to local standard)
Active power adjustable range 0~100%
THDi <3%
Power factor >0.99 ( adjustable+/-0.8 )
Performance
Max efficiency 98.5%
European weighted efficiency 98.3%
Self-consumption at night <1W
MPPT efficiency >99.9%
Protection
DC reverse polarity protection Yes
DC switch Yes
Protection class/overvoltage category I/III
Input / output SPD(III) PV: type II standard, AC: type II optional
Safety protection Anti islanding, RCMU, Ground fault monitoring
ARPC Anti reverse power controller (optional)
Communication
Power management unit According to certification & request
Standard communication mode RS485, Wifi/Ethernet/GPRS(optional), SD card, Multi-function relay
Operation data storage 25 years
General Data
Ambient temperature range -25° ~ +60°
Topology Transformerless
Degree of protection IP65
Allowable relative humidity range 0~100%
Max. Operating altitude 4000m
Noise ≤60dB
Weight 68kg
Cooling Fan
Dimension 713*737*297mm
Display LCD display
Warranty 5 years/ 7 years/ 10 years
Standard
EMC EN 61000-6-2, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12
Safety standards IEC62109-1/2, IEC62116, IEC61727, IEC-61683, IEC60068(1,2,14,30)
Grid standards AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, BDEW,
CEI 0-21/CEI 0-16, UNE 206 007-1, EN50549, G59, EN50530, NB/T32004
