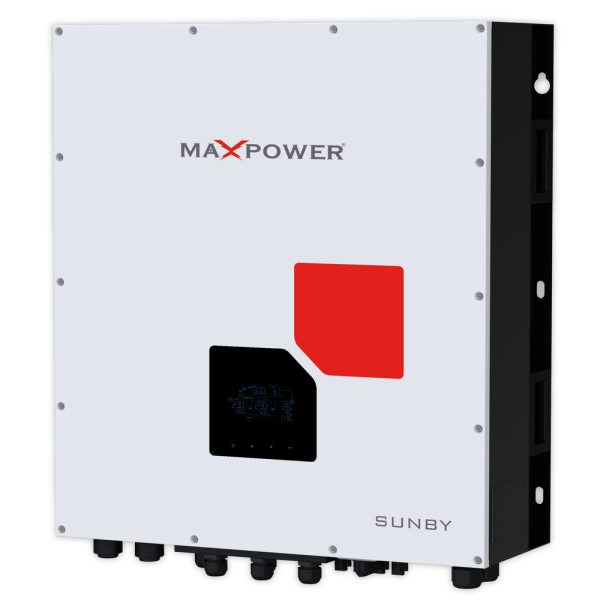

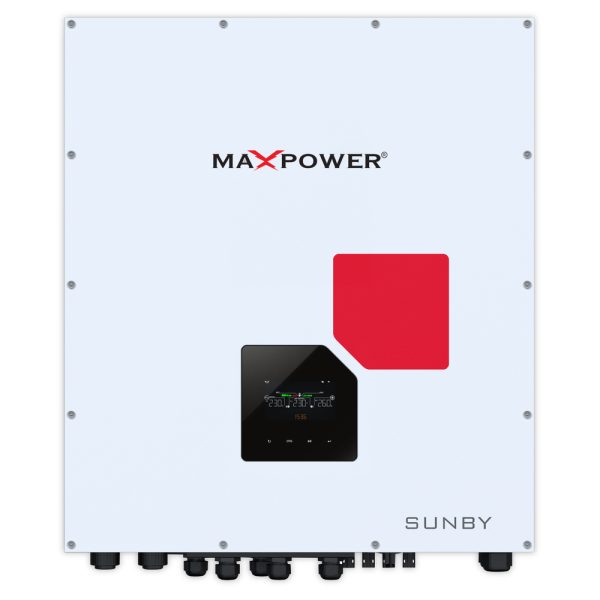

The suntronic plus 15,000 on grid solar inverter has 3-phase in and 3-phase out. The maximum PV input power integrated in the solar inverter is up to 22500 watts. on the other hand, the rated output power is 15k watts. This is PV inverter has maximum charging power of up to 15k watts. getting on to the grid-tie operation of this model;
- The range of voltage from nominal to maximum is 720—900 VDC.
- The voltage required for the starting up of the solar inverter model is 320 VDC to 350 VDC.
- MPP module requires a voltage range of 400 ~ 800 VDC.
- There are two MPPT modules trackers integrated in the solar inverter of which the first has a maximum input current of 37.65 A: B: 18.6 A.
The solar inverter model has a DC to AC conversion efficiency of up to 96%—while having European efficiency nominal of 95%. The AC start-up voltage required while the restarting of the model is 120 – 140 VAC per phase / 180 VAC per phase. Likewise, the maximum AC input current for the Suntronic Plus 15,000 on-grid inverter is the 40 Amperes. Working on the battery mode, the nominal output voltages are 230 VAC (P-N) / 400 VAC (P-P). The output waveform for the working is pure sinewave that ensures definite efficiency for the conversion ratio.
In the hybrid operation of the solar inverter, the nominal DC voltage ranges to 720 VDC to 900 VDC. Likewise, when the hybrid operation is in process, the output voltage range is 184 – 264.5 VAC* per phase.
Related: Difference Between an On-Grid & Off-Grid Solar Inverter
The dimensions of this solar inverter 2021 are 219 X 650 X 820 (D X W X H) mm. The communication port used in the solar inverter are RS-232/USB and CAN interface. The suitable operating temperature for this solar inverter model is -10 to 55 degrees Celsius. On the other hand, the working altitude ranges from 0 to 1000 meters from sea level.
For the monitoring interface, the intelligent slot used is an optional SNMP, motorbus, and AS-400 cards. Likewise, the model is integrated with smart notifying features to accomplish finest response form the user—whether the system experiences any sort of wiring or grounding failure, as being the best solar inverter 2021, it pings the user right away.
Frequently Asked Questions
Can I leave my inverter on all the time?
If you need to keep the data saved of such standard appliances like microwaves, alarm clocks etc.—it might be okay to keep the solar inverter turned on. Likewise, if one is leaving for a prolonged time, then it would be either a good idea to keep the solar inverter turned on for surveillance, and data keeping sake.
How solar inverter works?
The solar panel systems capture the sunlight radiations and convert it into electrical DC power—as the DC power cannot be consumed by the standard home appliances, thus it needs to converted into AC power. This is where solar inverter bumps in, it converts generated DC to AC power, so that the home standard appliance can work promptly.
