Suntronic 3000 On-Grid Inverter

The Suntronic PV3000 On-Grid Solar inverter is viable to feed the grid-tariff. This solar inverter model has a maximum PV array power capacity of up to 3000 Watts. The related output power is 4500 Watts. Likewise, the maximum open circuit voltage range of the PV array is 500 VDC. As being a powerful solar inverter, it adheres a voltage range as PV input of 120 ¬ 450 VDC.

• The operating voltage range of the MPPT module is up to 120 VDC.
• The potential of PV input current can reach up to 13 A.
• The MPPT module has single MPP tracker.

Working Efficiency

As being the best solar inverter in Pakistan for greater load—the PV inverter has nominal output voltage of 220/230/240 VAC. The exported voltage range by the DC to AC inverter is selectable between 184 – 264.5 VAC, or 195.5 – 253 VAC. The nominal output current drawn from the solar inverter is up to 13 amperes.

• The power factor range is 0.9 lag ~ 0.9 lead—the default is 0.99.
• The Suntronic PV3000 On-Grid Solar Inverter attains the maximum DC to AC conversion ratio of 95%.

Hybrid Operation

The grid efficiency is highly commended for this Suntronic PV3000 solar inverter model—as the acceptable input voltage range is from 90 – 280 VAC or 170 – 280 VAC. The frequency range for the grid input is 50/60 Heartz. The user doesn’t have the set frequency manually, as the power inverter is featured with autosensing. On the other side, the grid input has a maximum AC current of 40 Amperes.

Battery & Charger Working

The DC voltage integrated by the battery connected to the solar power inverter is up to 48 VDC. On the other side, the maximum AC charge current, maximum solar charge current and maximum charge current is 60 amperes respectively.

Related: Suntrio Plus 10K On-Grid Three Phase Inverter

Ease in Installation

The design of the Suntronic PV inverter is sleek and robust—the dimensions are 140 X 295 X 468 mm (D X W X H). The inverter model is not too much heavy thus, easy to place having a net weight of 11 kgs.

Environment Suitability

The Suntronic PV3000 On-Grid Solar Inverter can tolerate a humidity range from 0 – 90% (non-condensing). Likewise, the temperature range for suitable performance is 0 to 50° C. The optimal storage temperature is -15° to 60° C.

Frequently Asked Questions

Can Solar Inverter Work Without Battery?

A solar power inverter with hybrid technology is able to work without batteries. As they are hybrid and attached to the PV plates plus grid as well—they tend to supply power from or to both. These are also helpful in saving electrical bills. Here;

• Infini VII 3K Hybrid Solar Inverter
• Infini VII 5K Hybrid Solar Inverter

How long does a solar inverter last?

The solar inverters are needed to be proper cared and maintained—without suffering any misfortune or sudden damage, they can last from 10 to 12 years. Also, they are extremely important for safe and efficient working of solar power system.

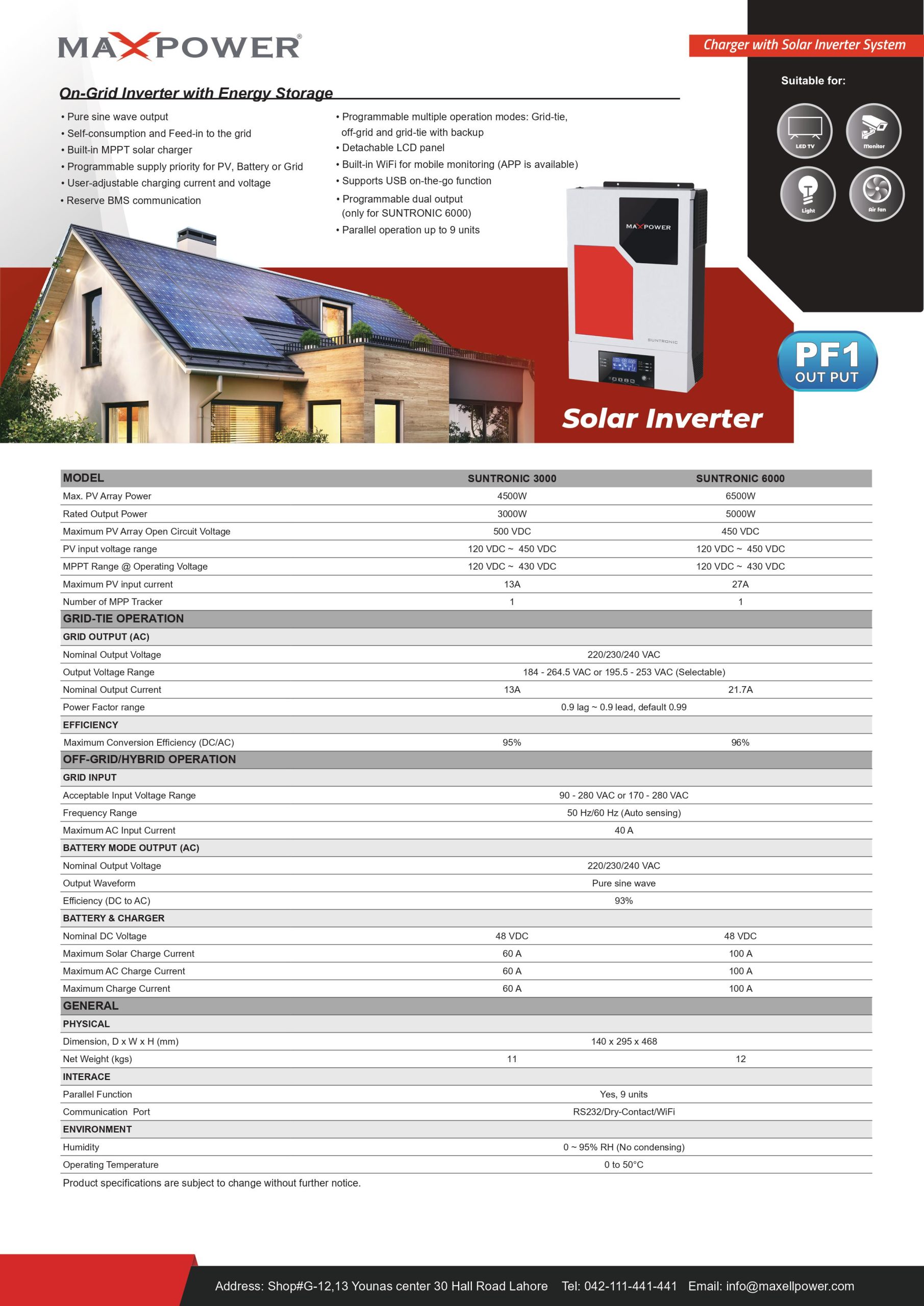

Technical Specification

Features

• Pure sine wave output
• Wide DC input range
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• Detachable LCD control module with multiple communications
• Built-in WiFi for mobile monitoring (App is available)
• Support USB On-the-Go function
• Reserved communication port for BMS (RS485)
• User-adjustable charging current and voltage
• Parallel operation upto 9 units
