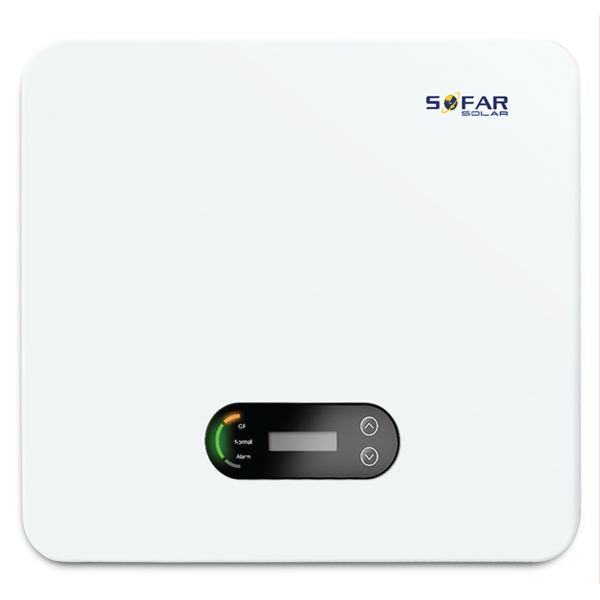

Sofar Three Phase Dual MPPT Solar Inverter (11KTLX-G3)

 130,000

Quick Overview

SOFARSOLAR is one of the subsidiaries of SOFAR Group in China and specializes in R&D, production, sales and service of grid-tied inverters ranging from 1kW to 7.5kW (residential), 10kW to 255kW (commercial) , hybrid inverters ranging from 3kW to 20kw and Amass store battery, etc . SOFARSOLAR is currently known to be one of the top 5 string inverter companies found throughout China. After breaking ground and gaining the reputation of being reliable, efficient, and professional, it has now become one of the famous companies in power storage inverters.



Brand Sofar
Product Code 11KTL-X-G3
Warranty 5 years
User Guide Download PDF
Categories: ,

Sofar three-phase dual MPPT solar inverter has the efficiency working module that gives a maximum output power of 10000W. The maximum ac power delivered by the solar inverter model is up to 11000VA. There are two MPP trackers placed in the Sofar three-phase inverter. As being manufactured as the best solar inverter 2021, the model’s MPPT operating voltage range has wide area from 420 V to 1000 V. These are some of the characteristics of this solar inverter model;

  • The maximum output current of delivered ranges up to 15.9 A.
  • The ratio of nominal grid voltage is 3/N/PE, 220V/380Vac, 230V/400Vac.
  • Attached to the grid, according to local standard, the grid voltage range is 310Vac – 480 Vac.
  • The power delivered onward is completely adjustable ranging from 0 to 100%.
  • THDi is likewise less than 3%.

Working Efficiency

Sofar’s best solar inverter 2021 model is able to efficiently convert DC to AC with a maximum efficiency ratio of 98.5%. on the other hand, the European weighted efficiency rate is 98%. The solar inverter model is extremely power efficient having a self-consumption rate less than 1 watt. The MPPT modules integrated in the inverter has a standard of 99.9% working capability.

Related: Suntronic 5000 On-Grid Inverter

Protective Features

The Sofar as being one of the top solar inverter tech companies ensure viable endurability, with installed protective features, these are;

DC Reverse Polarity Protection

It is a common problem found in the DC inverter, the sudden reverse in polarity causes damages to the plate. The DC reverse polarity protection is integrated in the Sofar solar inverter that is viable to ensure that the device receives no damage when the polarity is reversed.

Anti-Islanding Protection

This protective feature sense any problem with the power grid—that are; notifying any power outage, or connection problem. In that case of failure, with this protective feature on, the device shuts off the power feeding to grid, and notify the user instantly.

Leaking Current Protection

In the case of leaking current from the device at any site, the device instantly notifies the user and shuts off the device to avoid certain damages and power loss.

Ground Fault Monitoring

The solar inverter is able to check the working of grounding system—in case of faulted grounding any detected, the beeping notification will be helpful for the user to know the culprit.

Other Protective Features

The other protective features integrated in the solar inverter are;

  • PV-array String Fault Monitoring
  • Anti-Reverse Power Function (optional)
  • PV: type II standard, AC: type II standard (Input / Output SPD)

Physical Stature

The ambient temperature range for this solar inverter to work ranges from -30° to +60° Celsius. The structural topology of this solar inverter is transformerless. The degree of protection integrated and workable humidity range is IP65 and 0 ~ 100% respectively. Likewise, Sofar solar inverter Pakistan is able to work efficiently at a maximum altitude of 4000m. The weight of the micro inverter model is 37 lbs.

Related: Inifini VII 3K Hybrid Solar Inverter with Energy Storage

Aesthetics

The LCD display shows the working status with connectivity through Bluetooth and complete control with app. Maxpower solar inverters provide warranty ranging from 5 to 10 years along this device. For the counter of over-heating and viable working in hot temperatures, the cooling fan is installed for the purpose. For the standard communication mode, the device uses various means; RS485 / USB / Bluetooth, with optional Wife / GPRS. The data storage capacity in this best solar inverter model is up to 25 years.



Technical Specification

MODEL 11KTLX-G3
INPUT (DC)
Recommended Max. PV Input Power 15000Wp
Number of MPP trackers 2
Number of DC inputs 1/1
Max. Input voltage 1100V
Start-up voltage 160V
Rated input voltage 650V
MPPT operating voltage range 140V-1000V
Full power MPPT voltage range 420V-850V
Max. Input MPPT current 13A/13A
Maximum DC input short circuit current per MPPT 18A/18A
OUTPUT (AC)
Rated power 10000W
Max. AC power 11000VA
Max. Output current 15.9A
Nominal grid voltage 3/N/PE, 220V/380Vac, 230V/400Vac
Grid voltage range 310Vac-480Vac (According to local standard)
Nominal frequency 50Hz/60Hz
Grid frequency range 45Hz-55Hz/54Hz-66Hz (According to local standard)
Active power adjustable range 0~100%
THDi <3%
Power factor 1 default ( adjustable +/- 0.8 )
Performance
Max efficiency 98.50%
European weighted efficiency 98.00%
Self-consumption at night <1W
MPPT efficiency >99.9%
Protection
DC reverse polarity protection Yes
Anti-islanding Protection Yes
Leaking Current Protection Yes
Ground Fault Monitoring Yes
PV-array String Fault Monitoring Yes
Anti Reverse Power Function Optional
DC switch Yes
AFCI Protection Optional
Input / Output SPD PV: type II standard, AC: type II standard
Communication
Power management unit According to certification & request
Standard communication mode RS485 / USB / Bluetooth, Optional: Wifi / GPRS
Operation data storage 25 years
General Data
Ambient temperature range -30° ~ +60°
Topology Transformerless
Degree of protection IP65
Allowable relative humidity range 0~100%
Max. Operating altitude 4000m
Noise ≤40dB
Weight 17kg
Cooling Fan
Dimension 520*430*189mm
Display LCD & BLuetooth + APP
Warranty 5 years/ 7 years/ 10 years
Standard
EMC EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
Safety standards IEC62109-1/2, IEC62116, IEC61727, IEC-61683, IEC60068(1,2,14,30)
Grid standards AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21 / CEI 0-16, UNE 206 007-1,  EN50549, G98/G99, EN50530, NB/T32004
